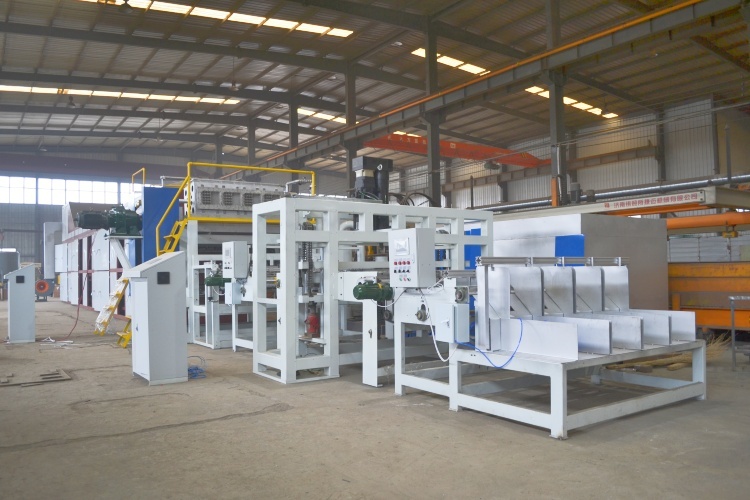

4*4Molds Paper Egg Carton Production Line 2500pcs/h Capacity Low Energy Consumption

Product Introduction

Pulping System

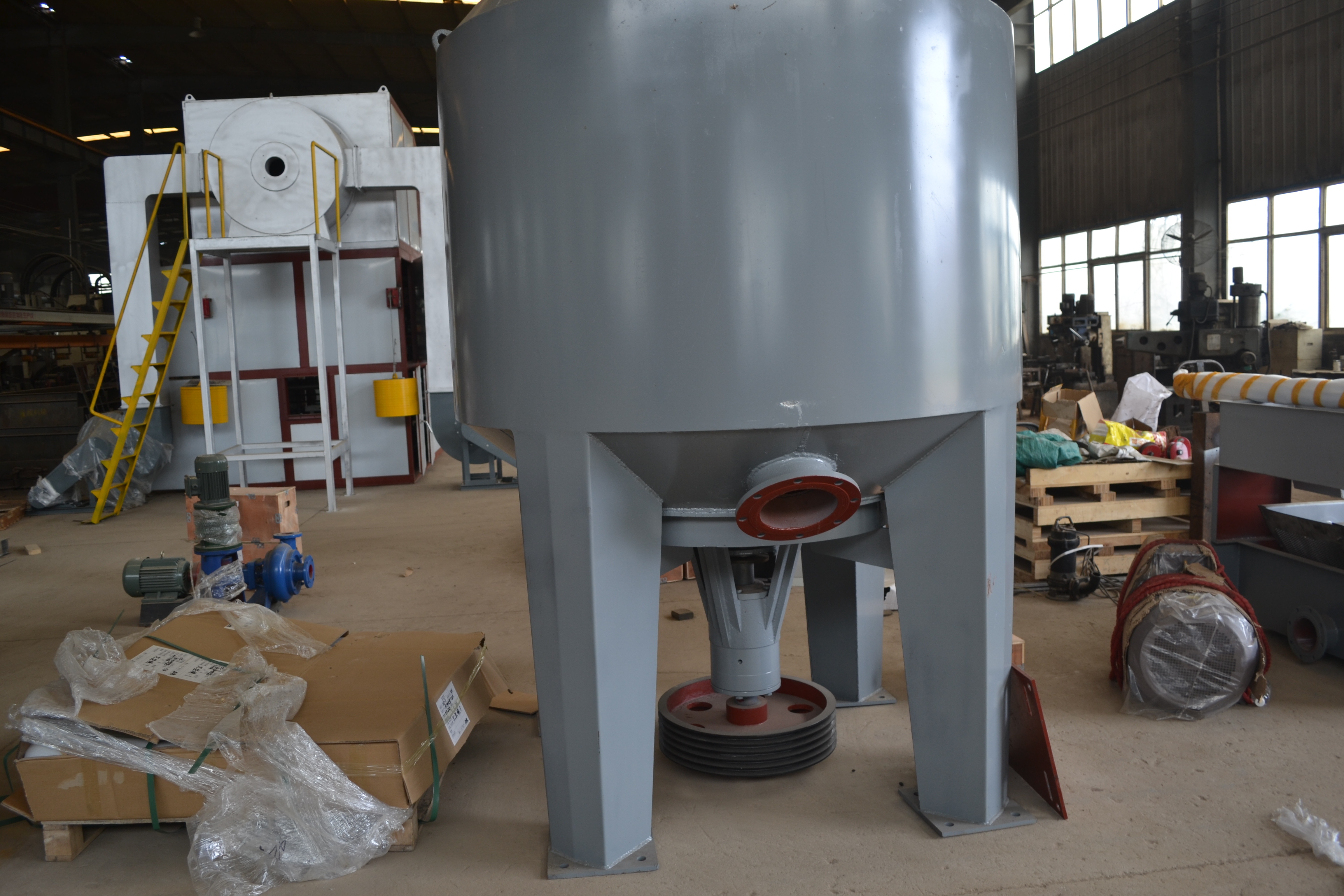

1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.

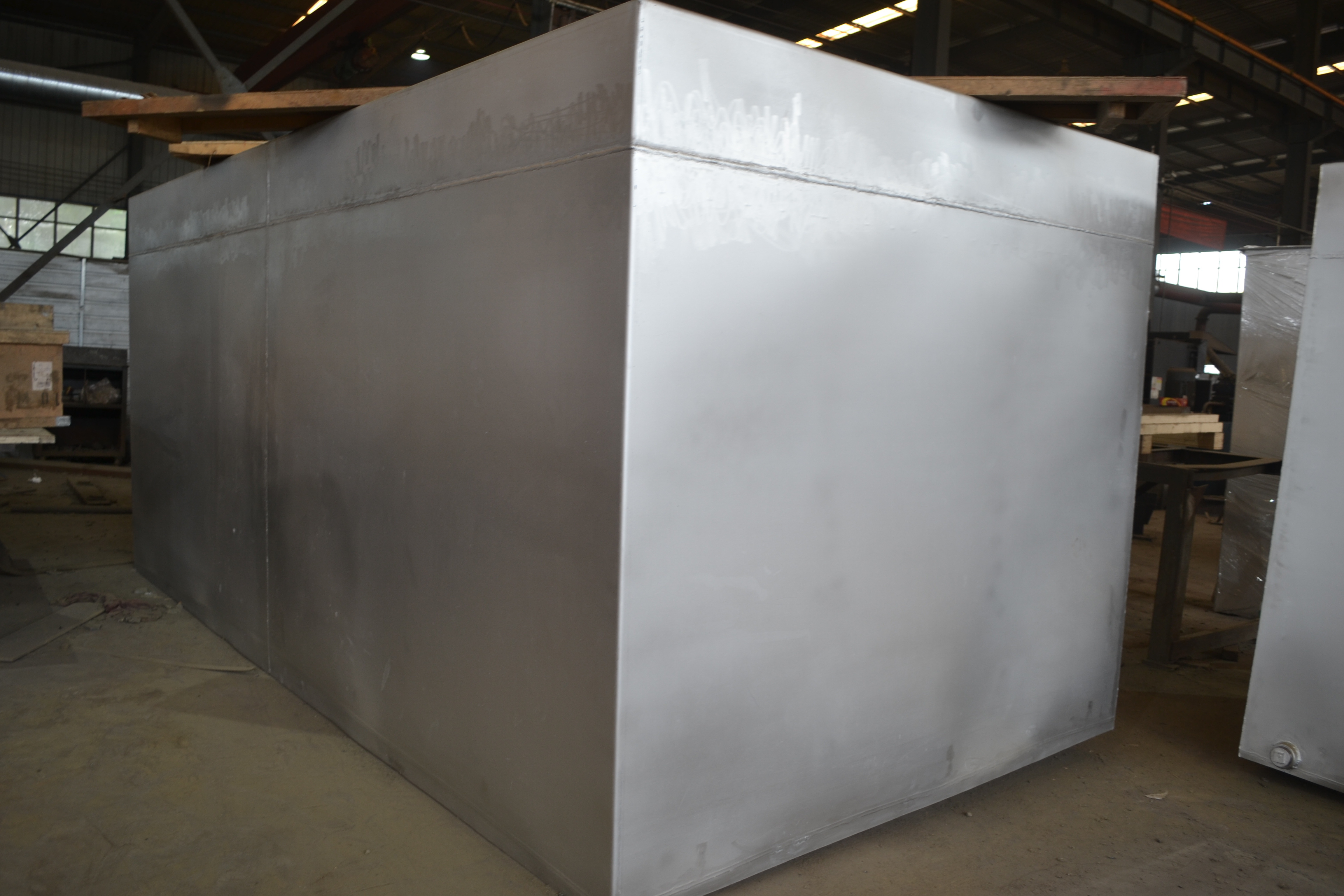

2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.

Molding System

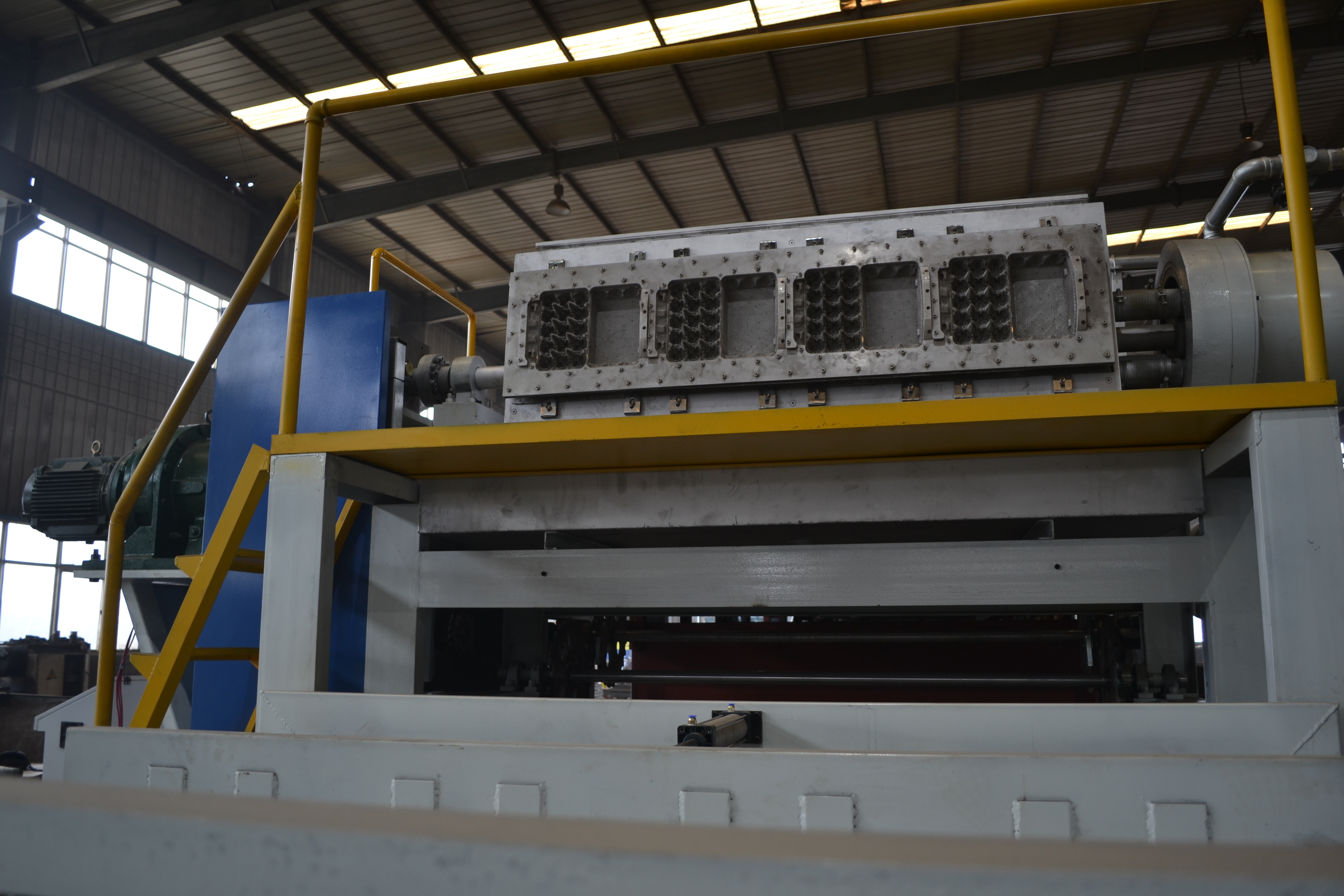

1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.

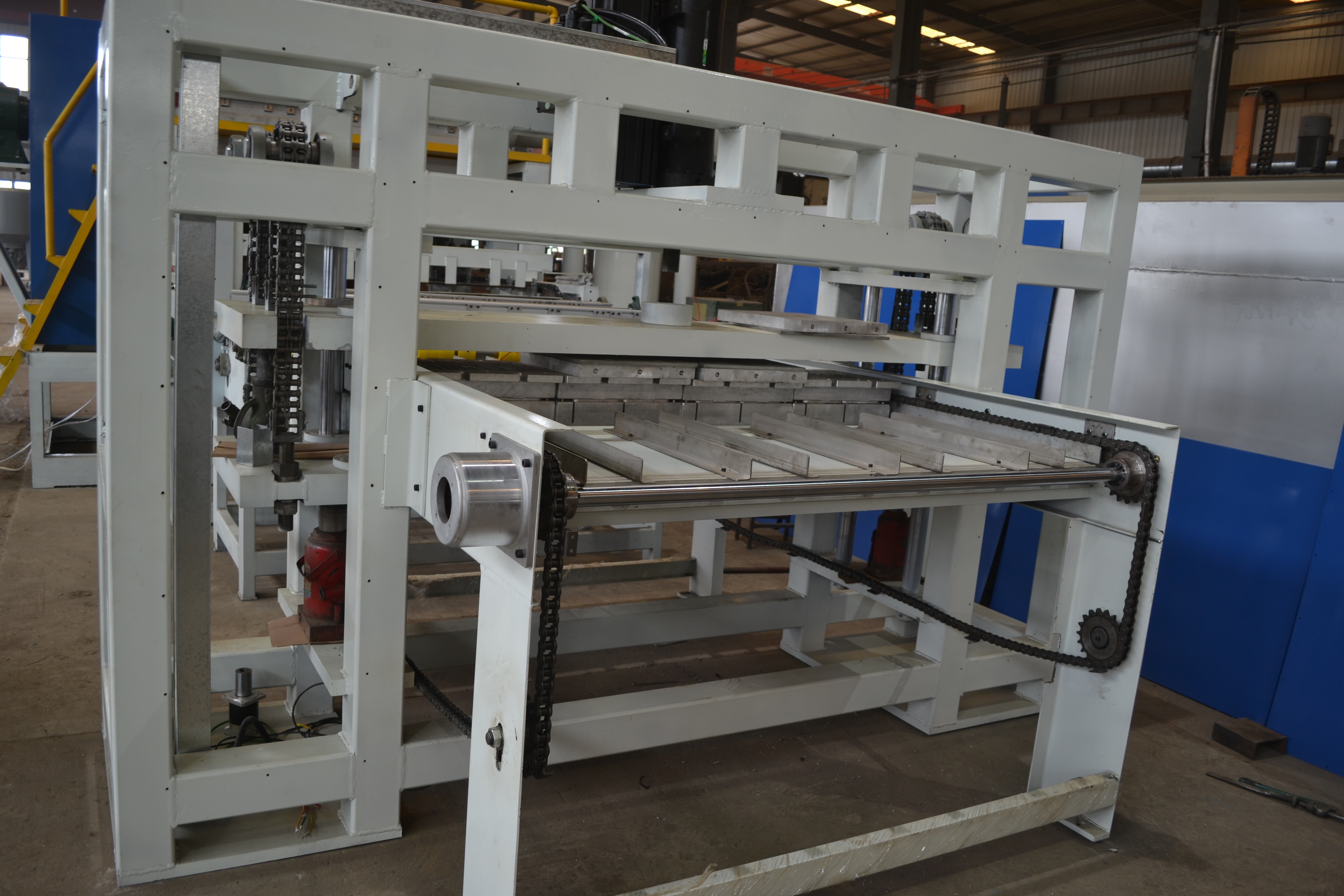

Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

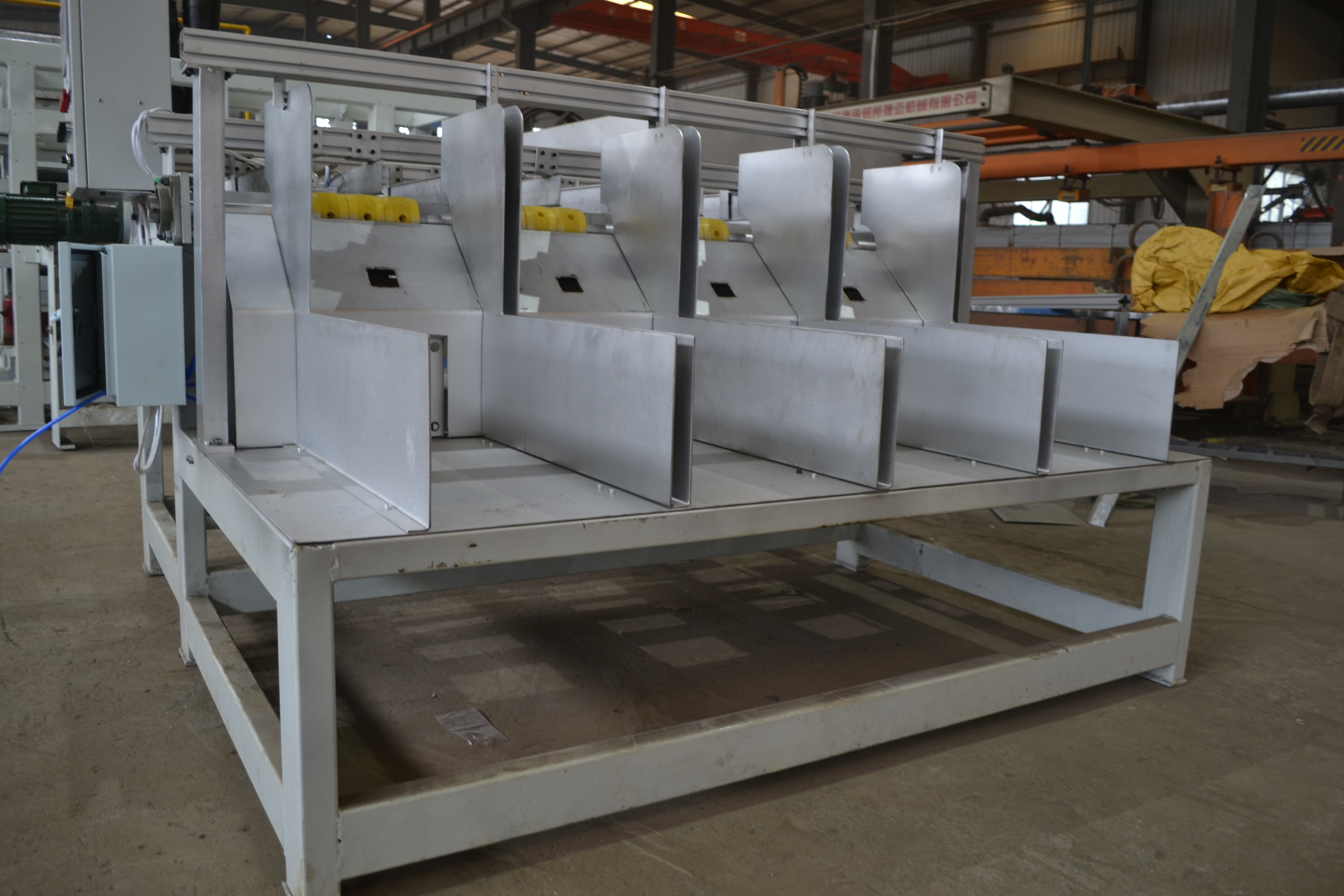

Stacking System

4 row, automatic Stacking, automatic Counting

With automatic counting function

Speed:0.01-99 seconds

Hot Pressing System

With 4 workstations hot pressing molds(10seats egg carton molds or customized)

Automatic hot pressing and semi automatic hot pressing model are available. Customer can choose the one he wants.

Packing
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
Payment terms:
40% advance payment by TT, 60% before delivery the goods.Or 100% Paid by L/Cat sight against shipping documents
